Product Description

PRODUCT PERFORMANCE

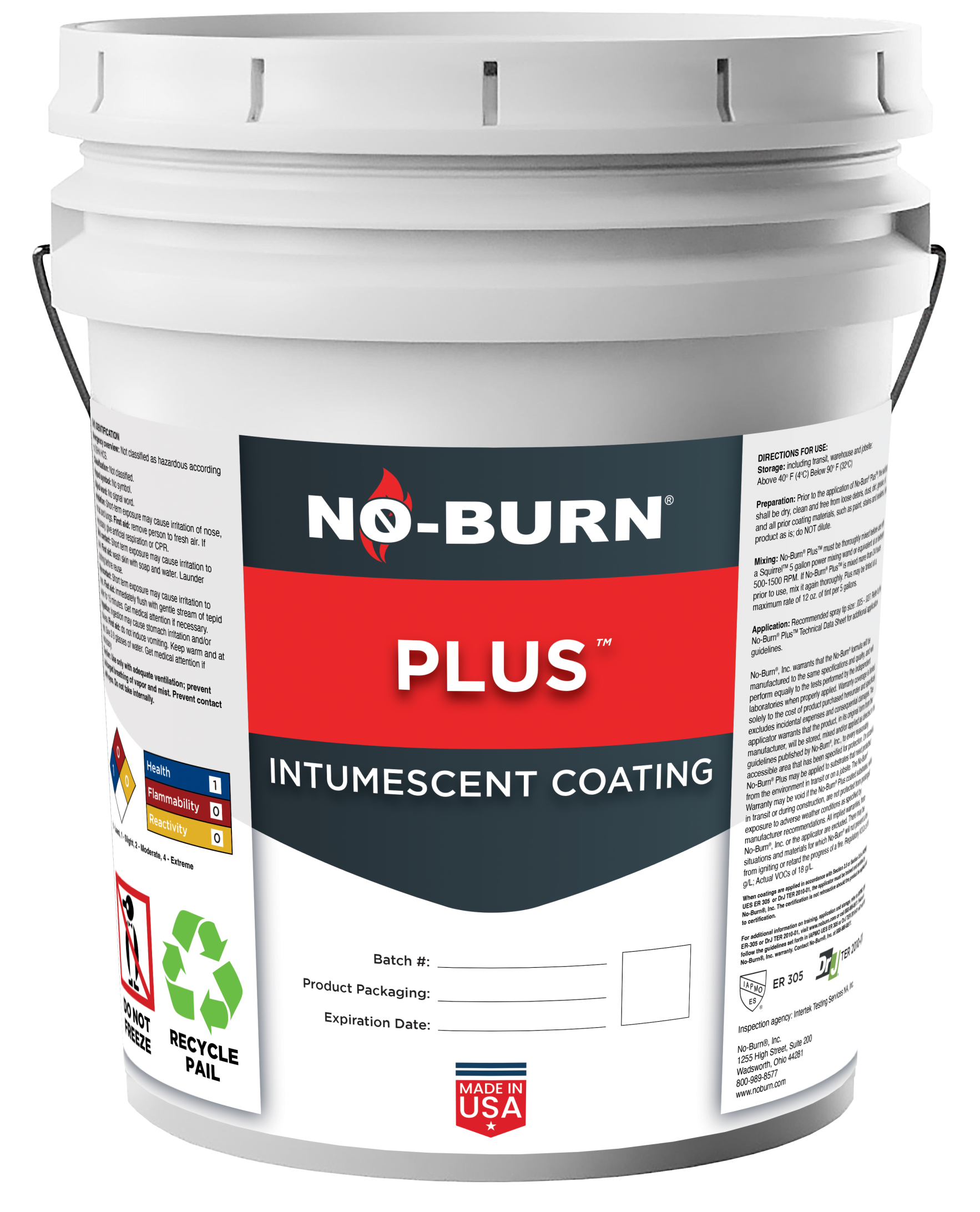

No-Burn Plus may be used in any of the Primary Uses expressed and in addition, may have the feasibility to meet other fire performance requirements. As an intumescent non-corrosive product, Plus limits flame spread and smoke developed, providing intumescent protection when applied and where lapped or butted lumber and sheeting edges are joined together. Penetrations or openings for ducts, vents, electrical outlets, lighting, devices, luminaries, wires, speakers, drainage, piping and similar penetrations or openings do not compromise Plus’s performance. Complies with USDA requirements for incidental food contact and ANSI/NSF 51 Food Zone Materials.

PRIMARY USES
For use in new and existing buildings, complying with the IBC®, IRC® IEBC® and other applicable codes or standards, Plus is utilized in applications where it provides:

• Surface Burning Characteristics
• Interior Finish Classification Class I or Class A:
  • Flame Spread (FS) 0-5
  • Smoke Developed (SD) 0-35
• Alternative or Non-prescriptive Thermal Barrier Protection
• Fire Resistance
• Class III Vapor Retardency

SPECIFICATIONS
Color: Opaque/White/Tinted
Finish: Flat
VOC Content: 18 g/L EPA Method 24
Dry Time: 60-90 Minutes
Pails: 5 Gallons (19 L), 55 lbs.
Drums: 55 Gallons (208 L), 605 lbs.
Shelf Life: 24 Months
Cure Time: 24 Hours
Boiling Point: 212°F
Freezing Point: 32°F
% Volatile by Volume: 38%
Specific Gravity: 1.25

APPLICABLE STANDARDS
No-Burn Plus may be specified in compliance of the following:
AC14 CARB
AC257 CDPH (CA Spec 01350)
AC377 CHPS
ANSI/ASHRAE/ICC/USGBC Standard 189.1 CSFM: 2280-2014:0100
ANSI/NSF 51 EC017
ASTM A653 GSA PBS-P100
ASTM D2915 ICC/ASHRAE 700 NGBS
ASTM D5055 IgCC
ASTM E84 LEED v3 2009
ASTM E84, 30 min LEED v4
ASTM E96 NFPA 255
ASTM E119 NFPA 286
ASTM E1623 SCAQMD Rule 1113
ASTM E2768 UL 723
CAN/ULC-S102 UL 1715
