K-Flex K-Fit Rubber Fittings

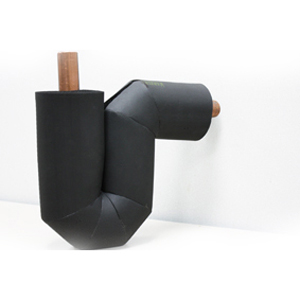

K-FIT® fittings are available in elbow (45s and 90s) and tees in wall thicknesses of 1/2” up to 2” with diameter sizes ranging from 3/8” I.D. to 6” IPS. (ID range is subject to variation depending on wall thickness). K-Fit p-traps are available in wall thicknesses of 1/2” up to 1-1/2” with diameter sizes ranging from 5/8” I.D. to 2-1/8” I.D.

Get More Info

Categories: , Tag:

Product Description

K-FIT fittings are factory-fabricated fittings made from NBR/PVC-based closed cell, flexible elastomeric foam insulation. They are produced under controlled conditions using an automated process to ensure uniformity, good fit and water-tight seams. They are environmentally- friendly as they are free of CFCs, HFCs, HCFCs, PBDEs, formaldehyde and fibers. An EPA- registered antimicrobial agent is incorporated into the product providing additional protection against mold, fungal and bacterial growth. They are UL GREENGUARD Gold Certified for low VOC emissions. The products are made in K-FLEX USA’s ISO 9001:2008-certified manufacturing facility in North Carolina.

` ASTM C534 Type 1, Grade 1
` ASTM D1056-00-2B1
` New York City MEA 186-86-M Vol. V
` USDA Compliant
` CFIA Compliant
` RoHS Compliant
` ASTM E84 25/50-rated (to 2”) – tested to UL 723, NFPA 255 and CAN/ULC S102-03
` NFPA No. 101 Class A Rating
` NFPA 90A, 90B
` Meets requirements of California ECB Title 24
` UL GREENGUARD® Gold Certified
` Meets energy code requirements of ASHRAE 90.1 and 189.1

Get More Info

General Insulation Company Inc. is an insulation supplier / insulation distributor that stocks and fabricates a wide variety of industrial and commercial air barrier, vapor barrier, moisture and water barrier products for the construction market.

K-Fit Pipe Insulation Tees Product Data Sheet

Kflex Elastomeric Foam SDS

K-Flex Product Installation Videos

Download (PDF, 761KB)
